Channel Zapping Time

Home / Channael Zapping time

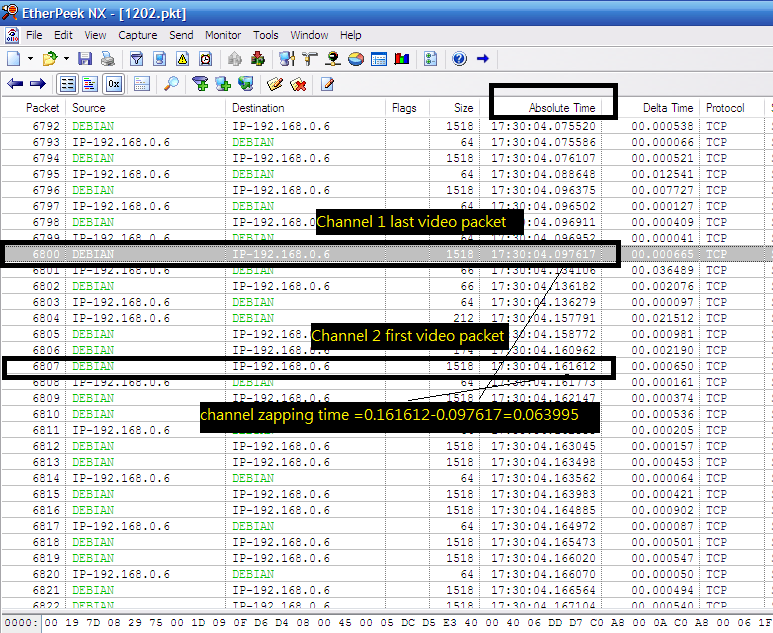

Amazing Channel Zapping time test

Win10 VLC video packets

Windows XP  VLC video packets

Demo

    PC

STB

 Mobile



Channel Zap Time

0.06 sec.

 0.07 sec. 0.7 sec.


App

 vlc radsplayer Kodi


Streaming Server

 Linux Linux Linux


Channel bitrate

 1.2Mbps 1.2Mbps 1.2Mbps


Input protocol

 RTMP RTMP RTMP / HLS


Output

 HTTP HTTP HTTP


OS

 Windows Android 4.0 / 1GHz Samsung J5 (5.0)


Demo video

 Click here Click here Click here

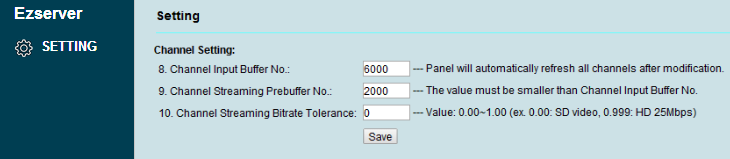

Setting

Login Panel and click Setting button to see these 3 options:

  • item#8: for channel input buffer (unit: 1K bytes).

  • item#9: for channel output for zapping time (unit: 1K bytes).

  • item#10: for video output streaming, its value is between 0.0 and 0.99

For example:

  • item#8: 8000, means RAM: 8M bytes for channel cache.

  • item#9: 2000, means RAM: 2M bytes for channel I-frame search.

  • item#10: 0.99 reduce 99% packet delay gap.

Panel has 10 channels:

  • Occupies RAM: 80M bytes for channel cache

  • The last 20M of the 80M bytes is used for I frame search.

  • Channel bitrate is 1Mbps, item#8: 8000 means 64-second video for channel cache.
